Duct Weight Calculator

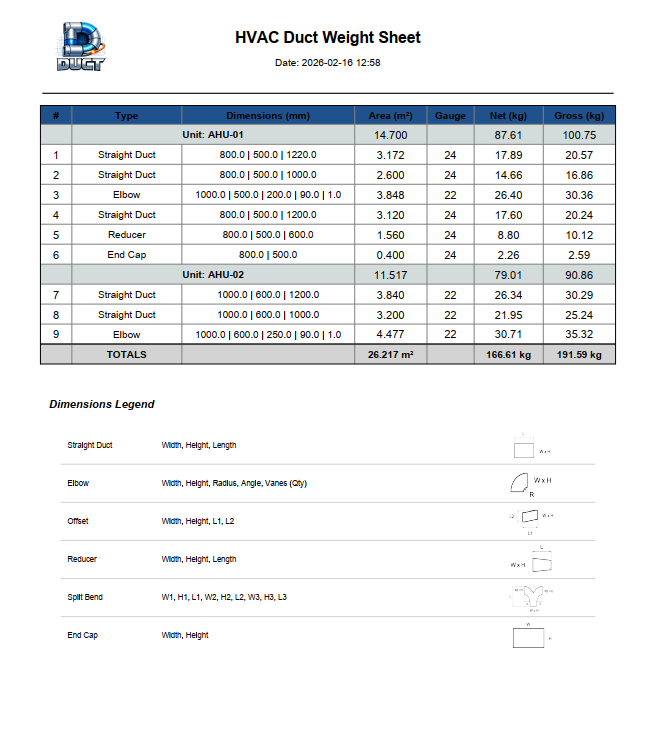

Take the guesswork out of HVAC estimation with the ThermoFlowPro Duct Weight Calculator. This specialized tool is designed for MEP contractors and engineers to calculate the exact weight and surface area of rectangular and round ductwork. By integrating standard sheet metal gauges and material densities. Our calculator exports output to excel sheet and pdf.
Version : 1.0.6
Key Features & Benefits
Accurate Material Estimation
Gauge Selection: Automatically determines sheet metal thickness based on duct dimensions and pressure class (SMACNA standards).
Surface Area Calculation: Get the total square footage/meters for insulation and cladding requirements.
Wastage Factor: Include a custom percentage for material scrap to ensure your orders are always sufficient.
Professional Reporting
Project Management: (If your app supports it) Mention that users can save projects and export data for professional submittals.
Multi-Material Support: Calculate weights for Galvanized Steel, Aluminum, and Stainless Steel.
How the Calculation Works
Input Dimensions: Enter the Width, Height (or Diameter), and Length of the duct section.
Select Material & Class: Choose the metal type and the required pressure class.
Instant Output: The tool calculates the Perimeter, Surface Area, and Total Weight including a factor for joints and reinforcements.
Commercial & White Labeling Services
Custom Software for Your Business: At ThermoFlowPro, we offer White Label versions of our engineering tools. We can customize this Duct Weight Calculator with your company logo and specific standards for a professional branding experience. [Contact us] for more details.
FAQ
- Q: Which standards does this calculator follow? A: Our weight calculations and gauge selections are aligned with SMACNA (Sheet Metal and Air Conditioning Contractors’ National Association) guidelines.
- Q: Does it include the weight of connectors? A: The calculator provides the net weight of the sheet metal. You can add a percentage factor (usually 10-15%) for connectors and reinforcements.
