VentiSmart (Ventilation Calculator)

         VentiSmart is an advanced Ventilation Rate Procedure (VRP) calculator designed to simplify the design and verification of outdoor air requirements for commercial and institutional spaces. This engineering tool accurately computes outdoor air rates  based on occupancy density and floor area  criteria, helping HVAC design engineers ensure indoor air quality (IAQ) and compliance with the latest building codes instantly. VentiSmart uses ASHRAE 62.1, International Mechanical Code and all related codes.

Version : 1.0.3

Download

Customize Application

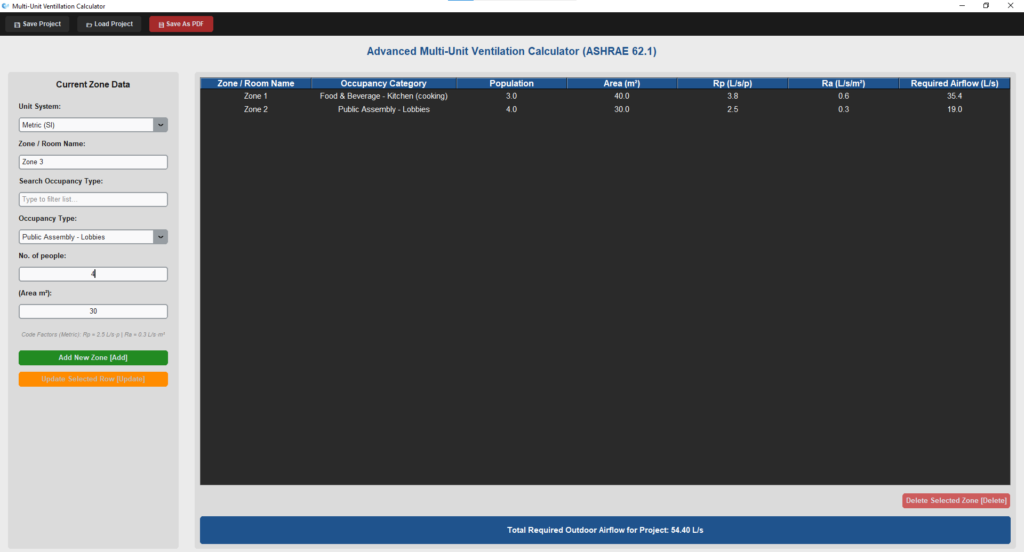

VentiSmart

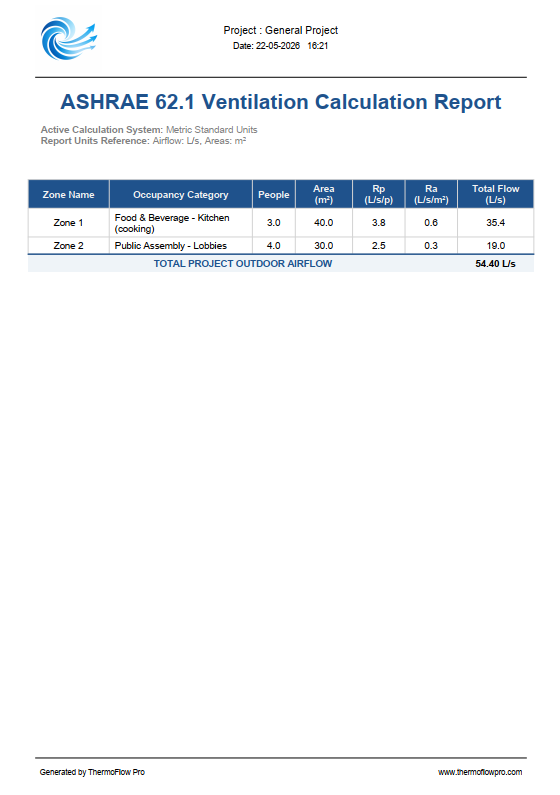

VFentiSmart

Technical Data & Parameters

Inputs

  • Occupancy Category: (Dropdown Menu containing spaces like: Office Space, Classrooms, Conference Rooms, Retail, Restaurant Dining, etc.).

  • Zone Population : Number of people in the zone.

  • Zone Floor Area : Total area of the ventilated space .

  • Zone Air Distribution Effectiveness : Dropdown based on supply/return configuration (e.g., Ceiling supply of cool air = 1.0, Ceiling supply of warm air = 0.8).

Outputs :

  • People Outdoor Air Rate : CFM/person (or L/s/person) automatically fetched from ASHRAE tables.

  • Area Outdoor Air Rate :  automatically fetched from ASHRAE tables.

  • Breathing Zone Outdoor Airflow : Total fresh air required at breathing zone level.

  • Design Outdoor Air Intake Flow  : Final adjusted fresh air airflow after accounting for Air Distribution Effectiveness .

Why Use Our Ventilation Airflow Calculator?

  • Full ASHRAE 62.1 Compliance: Seamlessly apply the Ventilation Rate Procedure (VRP) formulas. The tool maps specific occupancy categories, area occupant density, and outdoor air rates automatically.

  • Air Changes per Hour (ACH) Method: Perfect for rapid exhaust system design in high-demand zones like commercial kitchens, restrooms, and parking garages.

  • Engineered for the Field & Office: A clean, responsive user interface designed by engineers, for engineers. Access it instantly from your desktop during design or on-site via mobile.

FAQ

Q1: What method does this calculator use to determine ventilation rates?

A: This tool strictly utilizes the Ventilation Rate Procedure (VRP) as defined by the standard ASHRAE 62.1. The VRP is a prescriptive procedure where outdoor air intake rates are determined based on space type, occupant density, and floor area.

Q2: Does this tool support both Metric and Imperial units?

A: Yes. You can toggle between Imperial units (CFM for airflow and Sq.Ft for area) and Metric units (L/s  for airflow and sq.m for area). The calculator automatically applies the corresponding ASHRAE coefficient constants for each system.

Q: Is the software updated to the latest engineering codes?

A: Yes, the calculation logic is regularly maintained to align with modern ASHRAE standards and international mechanical codes (IMC).
